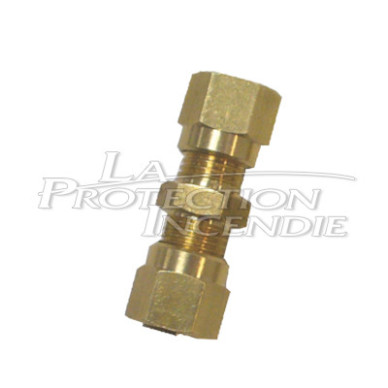

Straight union fitting Ø 6 brass
In stock
9640
Straight brass union fitting Ø6 mm designed for the connection between two copper tubes in pneumatic smoke extraction systems. Simple assembly part to ensure the continuity of the copper connection.
Log in to know your accessibility to the product and its price
Technical guides
These products may also interest you
| Product | Reference | Landmark | Designation | Price | Availability | Quantity |
|---|---|---|---|---|---|---|
|
9520
|
- |
In stock
|
|||
|
9641
|
- |
In stock
|
|||
|
9642
|
- |
In stock
|
|||
|
9643
|
- |
1 à 3 semaines
|
Description
Simple connection of copper tubes
This straight brass union fitting allows you to connect two sections of 6 mm diameter copper tube (Ref. 9520). It is intended for pneumatic connections used, for example, between CO₂ boxes and pneumatic modules.
Material and area of use
Made of brass, this fitting is suitable for applications where a connection is required between two tubes. Its straight design makes it easy to align and replace on existing installations.
Installation and compatibility
The connector accepts Ø6 mm tubes (Ref. 9520); check the dimensional compatibility of the tubes before assembly. It can be inserted directly between two sections of tube to restore continuity of the pneumatic circuit.
Characteristics of the Ø 6 brass straight union fitting:
- Material: Brass
- Height: 37.15 mm
- Diameter: 13.4 mm
- Diameter of the elements: 6 mm
- Weight: 0.021 kg
