Right-angled connector
In stock
9642

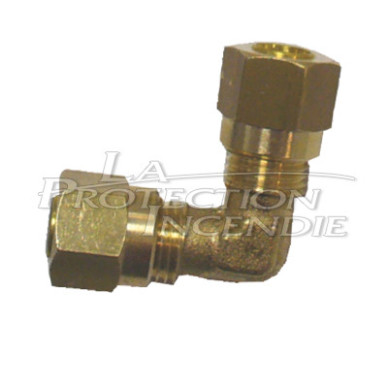

Brass elbow fitting designed to make the angled junction of two Ø6 mm copper tubes in the pneumatic connections of smoke extraction systems.
Log in to know your accessibility to the product and its price
Technical guides
These products may also interest you
| Product | Reference | Landmark | Designation | Price | Availability | Quantity |
|---|---|---|---|---|---|---|
|
9520
|
- |
In stock
|
|||
|
9640
|
- |
In stock
|
|||
|
9641
|
- |
In stock
|
|||
|
9643
|
- |
1 à 3 semaines
|
Description
Connect your copper tubes
The elbow fitting ensures the angular junction of two copper tubes (Ref. 9520), allowing the direction of the pneumatic circuit to be modified without interrupting the continuity of the gas.
Material and use
Made of brass, this fitting is suitable for common pneumatic connections used in particular between CO₂ boxes and pneumatic modules. Its design facilitates integration on routes requiring a change of orientation.
Installation and compatibility
The fitting accepts 6 mm diameter copper tubes (Ref. 9520). Before assembly, check the dimensional compatibility of the tubes and make a clean cut and possibly clean the end pieces. Follow current assembly practices to ensure the connection is watertight.
Features of the Elbow Fitting:
- Material: Brass
- Height: 31 mm
- Width: 31 mm
- Depth: 13.4 mm
- Diameter of the elements: 6 mm
- Weight: 0.023 kg
