Single zone opening - closing box 80g

CO² box for opening and closing mechanical winches - 80g
CO² box for opening and closing mechanical winches - 80g
CO² box for opening and closing mechanical winches - 80g
CO² box for opening and closing mechanical winches - 80g
CO² box for opening and closing mechanical winches - 80g
CO² box for opening and closing mechanical winches - 80g
CO² box for opening and closing mechanical winches - 80g
CO² box for opening and closing mechanical winches - 80g
CO² box for opening and closing mechanical winches - 80g
CO² box for opening and closing mechanical winches - 80g
In stock
9651
A technical issue ?

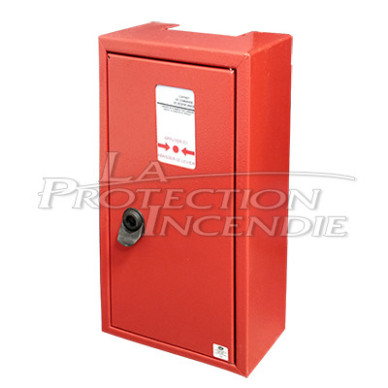

Single-zone metal box equipped with two strikers for 80 g CO₂ cartridges, allowing the opening and closing of the openings to be controlled (possibility of installing up to 4 cartridges: 1 opening, 1 closing and 2 reserves).
8 mm triangle key supplied

See the complete description

€173.55 Tax excluded

Seen it cheaper
Technical guides
16 - LPI - Désenfumage.pdf
Download
These products may also interest you
Product Reference Landmark Designation Price Availability Quantity
Copper tube - Ø 6 mm
9520
-

Copper tube 6mm - Length 25m
In stock
Log in to find out your price
CO² box for opening mechanical winches - 20g
9604
-

Pneumatic opening box 20g
Price €81.60 HT
In stock
CO² box for opening mechanical winches - 100g
9605
-

Pneumatic opening box 100g
Price €100.20 HT
In stock
8 mm triangle key
9607C
-

Triangle key for protective box
Price €2.80 HT
In stock
CO² box for opening and closing mechanical winches - 150g
9652
-

Single zone opening - closing box 150g
Price €180.05 HT
1 to 3 weeks
CO² box for opening and closing mechanical winches - 500g
9653
-

Dual zone opening - closing box 500g
In stock
Log in to find out your price
Description

Control the opening and closing of your windows


This 80g single-zone box incorporates two CO₂ cartridge strikers — one dedicated to opening and the other to closing — and can accommodate modules to control DENFC or DAC . It thus allows single-zone pneumatic control of openings by cartridge strike.


Cartridge capacity and configuration

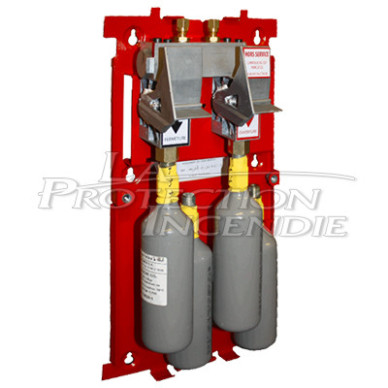

The box can hold up to four cartridges: one for opening, one for closing, and two as spares. Compatible cartridges are 50°C CO₂ cartridges with a 15/125 thread. Cartridges are not included.


Access, locking and user ergonomics

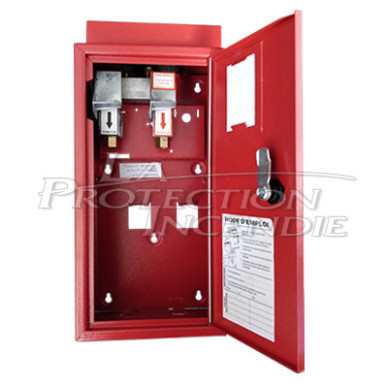

The front plastic window is tilting and reusable to facilitate access to the firing pins on the opening side. It is used by pressing the plexiglass until it is recessed and then lowering the lever until it locks. An 8 mm triangle key is provided and the box is equipped with a triangle lock.


Installation, fixing and maintenance

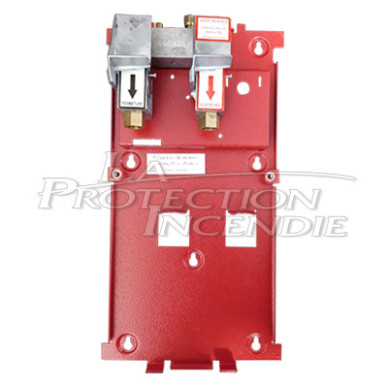

The bottom of the case can be separated for easy installation; four mounting holes are provided on the back and two internal holes allow the bottom to be fixed to the case.
Before commissioning, check that the CO₂ cartridge is sufficient to operate the DENFC.
Maintenance recommended 1 to 2 times per year.
Preventive/corrective maintenance every 10 years maximum.


Features of the 80g single-zone opening and closing box:


- Material: Metal
- Height: 330 mm
- Width: 201 mm
- Depth: 107 mm
- Weight: 4.46 kg
- NF certified
- Force to be applied to the lever: 5 daN
- Operating pressure at the remote control output: 3 to 28 bars
- Endurance: 120 cycles in total (60 cycles at minimum pressure and 60 cycles at maximum pressure)
- Cartridge type: CO₂ 50°C, screw thread 15/125 (Not supplied)
- Accessories supplied: 8 mm triangle key


30 gram single-zone red metal case available upon request.
