D6 trigger guard collar (pack of 100)
In stock
9670
Pack of 100 D6 steel bridge clamps for securing copper tubes.
Log in to know your accessibility to the product and its price
Technical guides
These products may also interest you
| Product | Reference | Landmark | Designation | Price | Availability | Quantity |
|---|---|---|---|---|---|---|
|
9520
|
- |
In stock
|
|||
|
9670
|
- |
In stock
|
Description
Fix your copper tubes

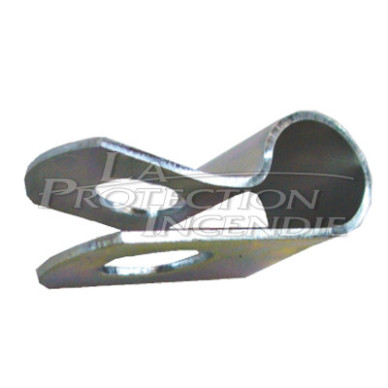

The D6 bridge clamp is designed to hold copper tubes (ref. 9520) in place at the start of CO2 boxes. Its attachment traps the tube: the part has an R shape for fitting, then adopts a P shape once tightened.
Simple installation - interlocking before fixing
To install the clamp, first fit the tube into the inverted R-shaped part, then screw the bracket onto the wall or ceiling. It is necessary to exert a slight force to cause the separation during fitting; after screwing and tightening, the clamp transforms into an inverted P and holds the tube.
Professional packaging
The product is sold in packs of 100 clamps and is intended for use with D6 copper tubes (ref. 9520).
Features of the D6 bridge collar:
- Material: Steel
- Height: 20 mm
- Width: 10 mm
- Depth: 8 mm (7 mm when tightened and installed)
- Diameter of the elements: 6 mm
- Packaging: batch of 100
