D8 trigger guard collar (pack of 100)
In stock
9671
Pack of 100 steel bridge clamps for fixing cable protection tubes (ref. 9612). First, fit the tube into the R-shaped clamp, then screw the bracket to the wall or ceiling; once tightened, the fixing changes to a P-shaped clamp .
Log in to know your accessibility to the product and its price
Technical guides
These products may also interest you
| Product | Reference | Landmark | Designation | Price | Availability | Quantity |
|---|---|---|---|---|---|---|
|
9609
|
- |
1 to 3 weeks
|
|||
|
9612
|
- |
In stock
|
Description
Simply attach your protective tubes

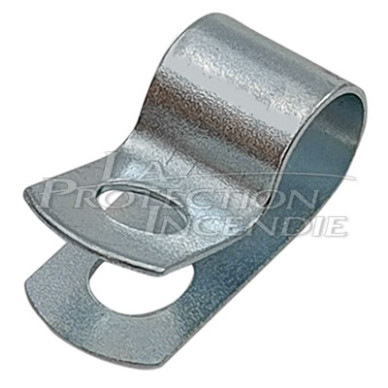

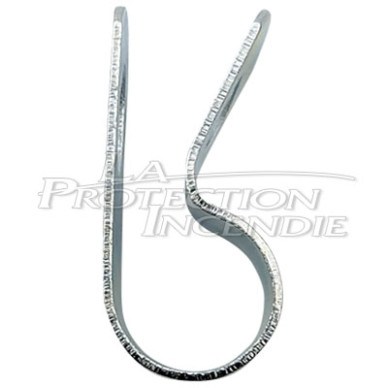

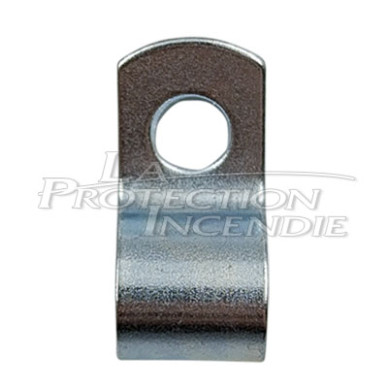

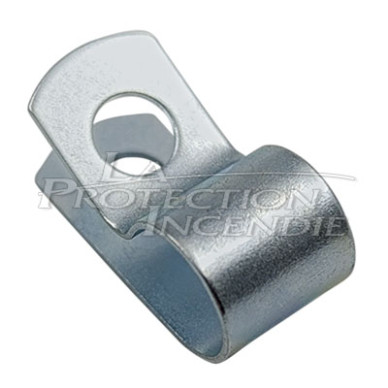

The D8 bridge clamp is designed to hold the cable protection tubes (ref. 9612) in place at the start of the smoke extraction winch. Its attachment traps the tube: the part has an R shape for fitting, then adopts a P shape once tightened.
Simple installation - interlocking before fixing
To install the clamp, first fit the tube into the R-shaped part, then screw the bracket onto the wall or ceiling. It is necessary to exert a slight force to cause the separation during fitting; after screwing and tightening, the clamp transforms into a P and holds the tube.
Professional packaging
The product is sold in packs of 100 clamps and is intended for use with bendable protective tubes (ref. 9612).
Features of the D8 bridge collar:
- Material: Steel
- Height: 21.6 mm
- Width: 10 mm
- Depth: 10 mm (8 mm when tightened and installed)
- Diameter of the elements: 8 mm
- Packaging: batch of 100
- Sold in batches
