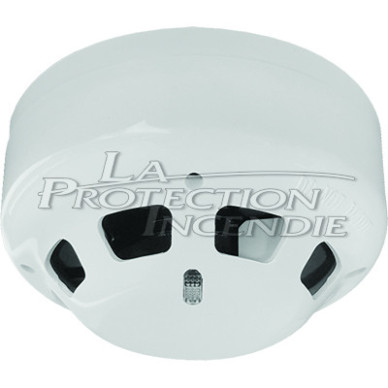

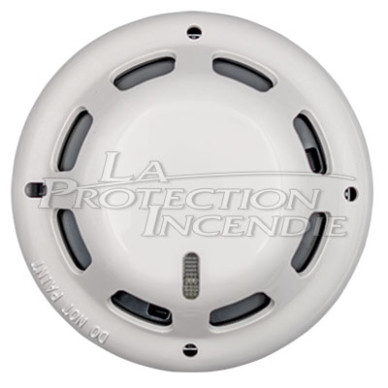

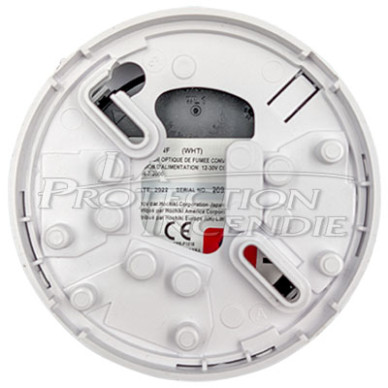

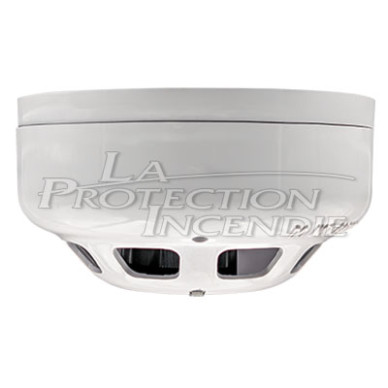

Optical detection head
In stock
The Hochiki optical head for servo systems detects smoke early, automatically compensates for contamination, and features dual LEDs for 360° visibility.
CE and NF certified
Technical guides
These products may also interest you
| Product | Reference | Landmark | Designation | Price | Availability | Quantity |
|---|---|---|---|---|---|---|
|
TND_AIR4-S
|
- |
3 to 5 weeks
|
Description
Optical detection suitable for servo systems
The Hochiki optical detection head detects the presence of smoke particles by measuring light variations in its measuring chamber, and integrates into a servo system to continuously transmit its status to the central panel to enable centralized supervision and processing of alarms, faults and associated commands.
Security and Installation Features
The head incorporates automatic sensor contamination compensation to maintain sensitivity over time. It has a dust cover to limit fouling during installation and a safety lock function to secure the assembly after installation. The dual LED allows 360° viewing of the detector status.
Performance and reliability in varied conditions
The analysis chamber is sized to efficiently analyze suspended particles while limiting false alarms caused by steam. This design aims to ensure continuous and stable detection over an operational temperature range covering common uses.
Optical Detection Head Features:
- Material: ABS plastic
- Height: 52 mm
- Diameter: 100 mm
- Weight: 0.140 kg
- Standard: Certified EN 54-7, NF, CE
- Power supply: To be connected (operating voltage from 9.5 to 30 Vdc)
- Protection index: IP42 / IK 07
- Operating temperature: -10°C / +50°C
- Others: Optical Detector, Mounting Base, Dust Cover
