Complete detector test kit - 7.20 m

Complete solution for on-site inspections

The Complete Detector Test Kit includes all the equipment needed to perform ground-based thermal and smoke detector tests. It provides a ready-to-use setup for testing operations.

Extended reach up to 7.20 m

This kit allows you to reach detectors up to 7.20 m . It combines modular and telescopic elements that facilitate access to sensors at height and allow, if necessary, the addition of a second extension (ref. 353) to increase the range up to 8.50 m .

Multi-process for varied environments

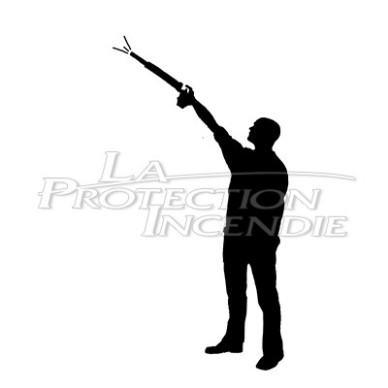

The kit covers both open-mode tests, which reproduce a direct gas projection, and closed-mode tests, which confine the gas in a bowl to reduce aerosol consumption and promote rapid triggering. This dual process allows the control method to be adapted to the constraints and objectives of the site.

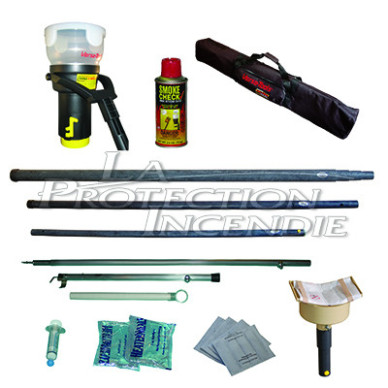

Content and operational compatibility

- An adapter for open testing (ref. 358)
- An Open Test Kit (ref. 320) - including pole, extension and broadcast adapter
- A 6.00 m closed test kit (ref. 322) - including pole, closed test head, carrying bag and aerosol
- A Thermal Detector Test Kit (ref. 350) - including thermal test bowl, pole adapter, syringe, bottle, rubber bands and activation sachets with their saline solutions
- A 2-section telescopic pole of 2.50 m (ref. 354)
- A 1.20 m composite extension (ref. 353)

Transport and storage

The included carrying bag makes it easy to store and move the kit between jobs, while keeping the components together and dry according to component storage recommendations.

Instructions for use and safety

Before each use, check that the components are securely fastened and fitted together, follow the procedures for inserting and locking consumables, and follow the precautions specific to each component (flammability of aerosols, handling of thermal bags, keeping components dry). The kit is integrated into maintenance protocols by following the manufacturer's recommendations.
