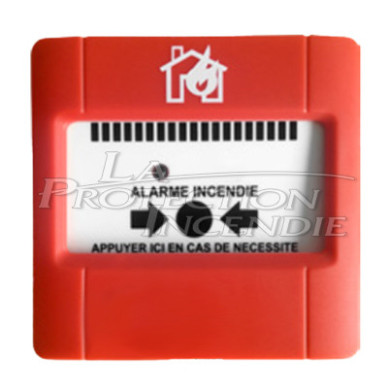

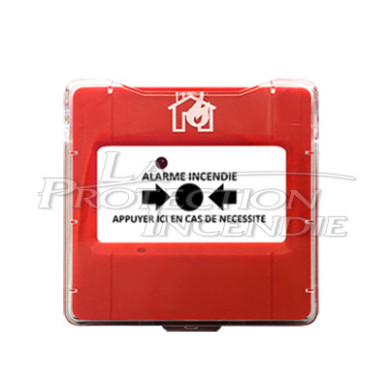

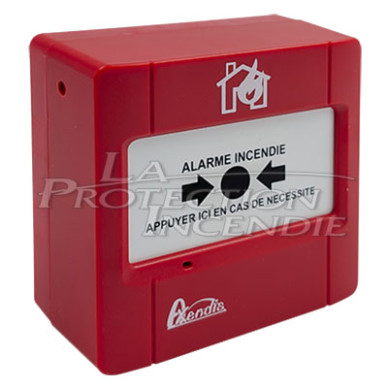

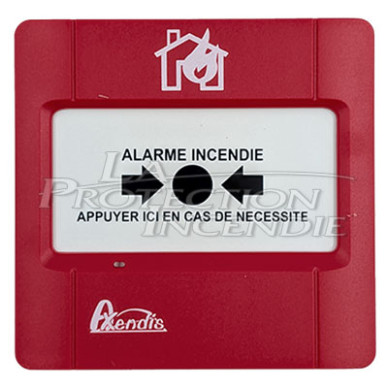

Déclencheur manuel rouge conventionnel
In stock
The conventional red manual call point is a wired device designed for indoor use and can be surface or flush mounted . It triggers the fire alarm with a simple press and resets with a key.
Log in to know your accessibility to the product and its price
These products may also interest you
| Product | Reference | Landmark | Designation | Price | Availability | Quantity |
|---|---|---|---|---|---|---|
|
0635
|
- |
Price
€46.50
HT
|
In stock
|
|
|
|
0636
|
- |
Starting at
Price
€62.60
HT
|
In stock
|
|
|
|
0980V
|
- |
Price
€5.15
HT
|
1 à 2 semaines
|
|
|
|
0986-2
|
- |
Price
€125.00
HT
|
In stock
|
|
|
|
0986-4
|
- |
Price
€193.00
HT
|
In stock
|
|
Description
Raise the alarm in case of fire!
The red manual trigger is a wired device designed for indoor installation and can be surface-mounted or recessed depending on site constraints. It is suitable for establishments receiving the public (ERP) and establishments receiving workers (ERT) and must be positioned at an access height of approximately 1.30 m to allow rapid intervention.
Electrical connection and fixing

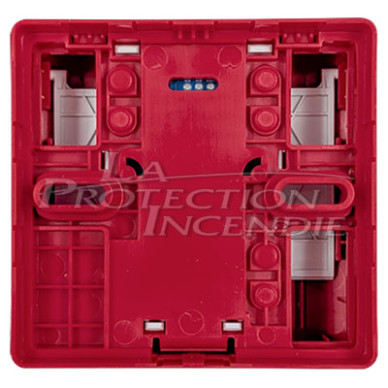

The connection is made via a cage clamp terminal; the compatible cable cross-section is 8/10ths, 1.5 mm². The housing has fixing holes with a center distance of 50 to 70 mm wide for simple and standardized installation.
Test and rearm

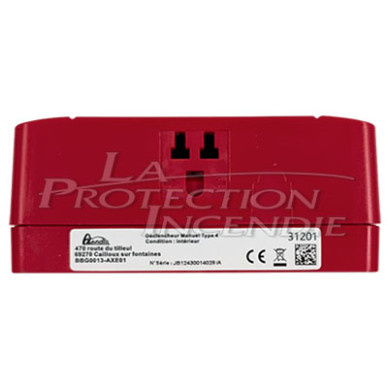

To test the alarm, press the manual trigger. To reset, insert the reset key into the entry located under the case and operate the reset mechanism according to the installation procedure.
Features of the Conventional Red Manual Trigger:
- Material: ABS plastic
- Height: 85 mm
- Width: 90 mm
- Depth: 37.5 mm
- Weight: 0.095 kg
- Operating Temperature: -10°C to +55°C
- Protection index: IP30 / IK06
- Breaking capacity: 100 mA maximum, 30 V maximum
- Others: Opening and Resetting Key
