Thermal bags (18 bags + 8 solutions: the lot)

Progressive and controlled thermal testing

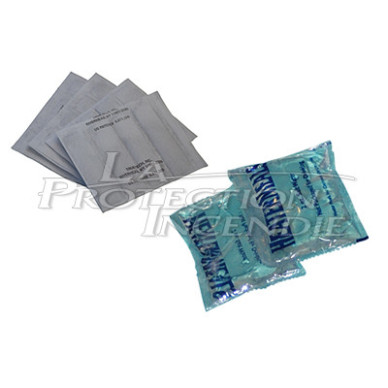

The thermal sachet set includes eighteen activation sachets , presented in the form of four plates of four sachets and one plate of two sachets, as well as eight saline solutions . They are designed to produce a gradual rise in temperature of up to 90 °C . The standard reaction of each sachet lasts approximately fifteen minutes and can be extended up to two times by adding saline solution.

Complete set for thermal detector testing

This kit is for use with the Thermal Detector Test Kit referenced 0350. It provides a sequence of activation and solution applications for testing thermal detectors over the temperature range 57.22–87.78 °C , to verify device actuation and response.

Compatibility and usage

The activation sachets and saline solutions are compatible with all types of heat detectors and are integrated into the control protocol carried out with the 0350 kit. Their packaging in batches allows several successive tests to be carried out on site.

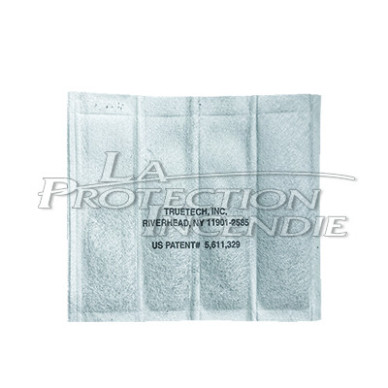

Characteristics of the 4-bag plate:

- Height: 122 mm
- Width: 147.7 mm
- Depth: 4.2 mm
- Weight: 17.8 g

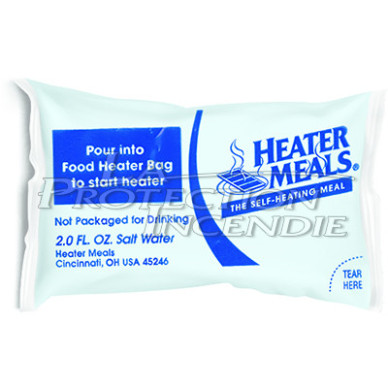

Characteristics of a saline solution:

- Material: Plastic
- Height: 78.3 mm
- Width: 123.3 mm
- Depth: 12 mm
- Weight: 51.1 g
- Capacity: 57 mL
- Others: 15 min Chemical Reaction
