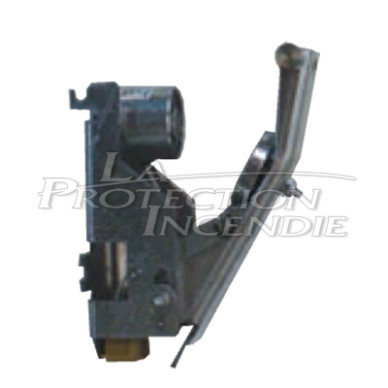

48V transmission module for pneumatic control box

Thumbnail N°1
Thumbnail N°3
Thumbnail N°4
Thumbnail N°5
Thumbnail N°6
Thumbnail N°7
Thumbnail N°8
Allows smoke vents to be opened using a 48V input voltage.
Allows smoke vents to be opened using a 48V input voltage.
Allows smoke vents to be opened using a 48V input voltage.
Allows smoke vents to be opened using a 48V input voltage.
Allows smoke vents to be opened using a 48V input voltage.
Allows smoke vents to be opened using a 48V input voltage.
Allows smoke vents to be opened using a 48V input voltage.
In progress of replenishment (1 à 4 semaines)
9655C
A technical issue ?

Allows the triggering of a pneumatic system with a 48V emission .

See the complete description

€92.90 Tax excluded

Seen it cheaper
These products may also interest you
Product Reference Landmark Designation Price Availability Quantity
CO² box for opening mechanical winches - 20g
9604
-

Pneumatic opening box 20g
Price €81.60 HT
In stock
CO² box for opening mechanical winches - 100g
9605
-

Pneumatic opening box 100g
Price €100.20 HT
1 to 3 weeks
CO² box for opening and closing mechanical winches - 80g
9651
-

Single zone opening - closing box 80g
Price €173.55 HT
In stock
CO² box for opening and closing mechanical winches - 150g
9652
-

Single zone opening - closing box 150g
Price €180.05 HT
1 to 3 weeks
CO² box for opening and closing mechanical winches - 500g
9653
-

Dual zone opening - closing box 500g
Price €215.40 HT
In stock
Electromagnetic module for pneumatic box
9655
-

Electromagnetic module for pneumatic box
Price €86.90 HT
In stock
Pneumatic module for cabinet
9656
-

Pneumatic module for pneumatic box
Price €74.20 HT
In stock
Allows smoke vents to be opened using a 24V input voltage.
9655B
-

24V transmission module for pneumatic control box
Price €120.10 HT
1 à 4 semaines
Description

Easy mounting on pneumatic boxes

- Open the hood,

- Pull the screws located on each side of the firing pins to detach the belt from the bottom of the box,

- Carefully remove the cartridges screwed under the firing pins,

- Install the module by inserting the hooks into the lugs at the bottom,

- Fix the module to the bottom using the M5 screw provided,

- Connect the terminal block respecting the polarity: Red to positive (+)

Functioning

The remote control order arrives at the electromagnetic module, releases the trigger arm which drives the lever which causes the cartridge to fire.

Rearmament

‐ After canceling the remote control order, manually raise the percussion lever to its waiting position,

- Install new CO2 cartridges that comply with the installation,

If another test is to be carried out, wait for the firing pin block to warm up.



Technical characteristics:

- 48 Vdc at 3.5 W emission
- M5 screw and a Ø5 washer supplied
