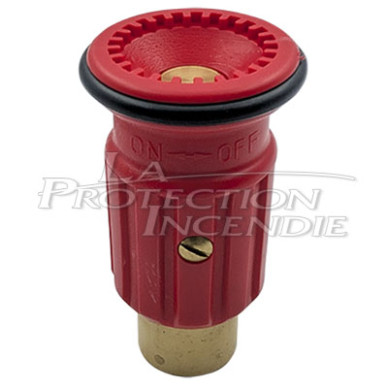

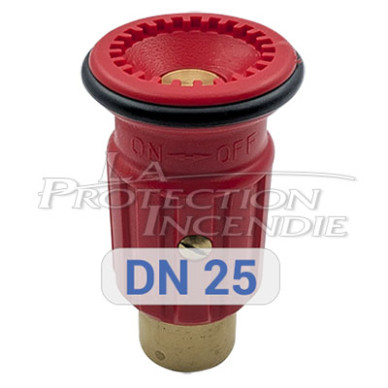

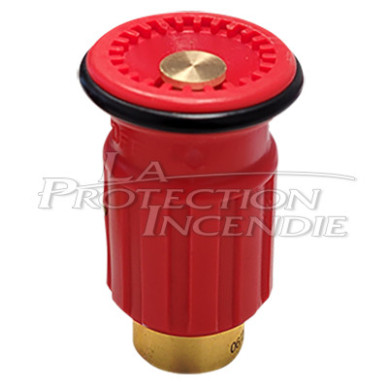

Diffuser DMFA Eurofeu DN25

A Versatile and Effective Diffuser for your RIA Interventions

The DMFA Eurofeu DN25 Diffuser is designed to fit into the Eurofeu Rotating Pivoting DN25 Armed Fire Hoses. It is screwed on and offers 3 operating positions that can be selected by rotating its body: closed , homogeneous cone diffusion, or straight jet , for greater adaptability during interventions.

The device's first feature, the homogeneous cone projection, allows it to cover a wide area. This mode is ideal for quickly controlling a fire outbreak. It diffuses fine droplets, thus ensuring high efficiency, with a cooling and ventilation effect , and user protection . In straight jet mode, the device allows a more precise attack, particularly suitable for localized fires.

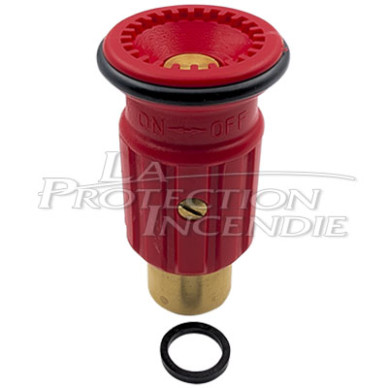

This diffuser comes with a gasket, to be positioned at the bottom of the thread to ensure a tight connection.

Please note: The performance of a diffuser depends on the certified characteristics of the RIA with which it is associated.

Characteristics of the DMFA Eurofeu DN25 Diffuser:

- Material: Plastic
- Length: 90 mm
- Diameter: 52 mm

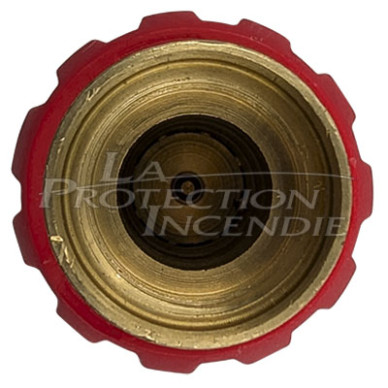

- Thread material: Brass
- Thread type: Female
- Thread diameter: 21.70 mm
- Thread depth: 15.30 mm without seal, 12.65 mm with seal

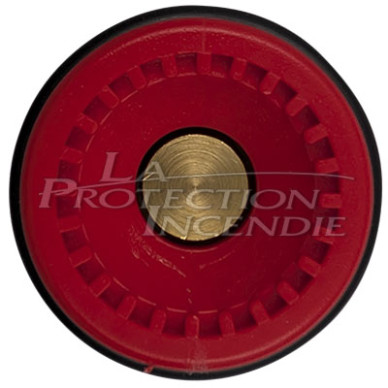

- Diameter of the diffusion orifice 18 mm
- Diffusion type: Homogeneous cone and straight jet
- Weight: 0.270 kg
