Manual smoke extraction trigger

Quickly activate smoke extraction in the event of a fire

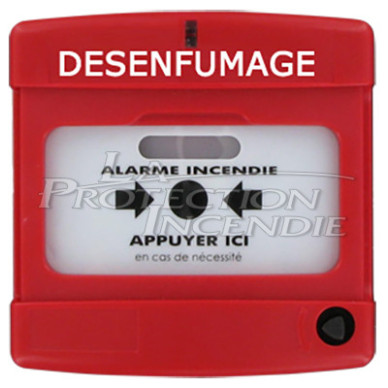

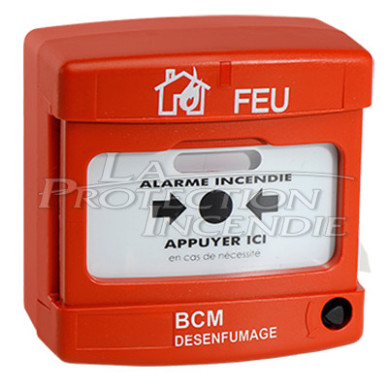

The manual smoke extraction trigger is a manual control box (BCM) intended for the Autonomous Trigger Detector System (SDAD). By pressing its deformable membrane, information is transmitted to the autonomous trigger detector (ref. 9508) in order to control the smoke extraction devices .

Terms of Use and Contact Types

Designed for indoor use, this model complies with conventional type A. It is equipped with 0.5A / 0 to 60 Vdc dry changeover contacts without a cut strap. Depending on the configuration, different resistors can be integrated:
- 470 Ohms (strap A cut, 30 mA / 0 to 15 Vdc)
- 910 Ohms (strap B cut, 30 mA / 0 to 30 Vdc)
- 10 kOhms (C strap cut, 30 mA / 0 to 60 Vdc)

Robust construction and compliance

The housing is made of ABS plastic and offers an IP44 protection rating against water splashes and IK07 against impacts. It is certified compliant with NF 61961 and EN 54-11 standards. It can be surface-mounted or flush-mounted.

Features of the manual smoke extraction trigger:

- Material: ABS plastic
- Height: 94 mm
- Width: 94 mm
- Depth: 54 mm
- Weight: 0.190 kg
- Operating Temperature: -10°C to +55°C
- Power supply: Wired
- Protection index: IP44 / IK07
- Standard: NF 61961 & EN 54-11
- Others: Opening, Arming and Re-arming Key
