Protective cover with alarm

Enhanced trigger protection

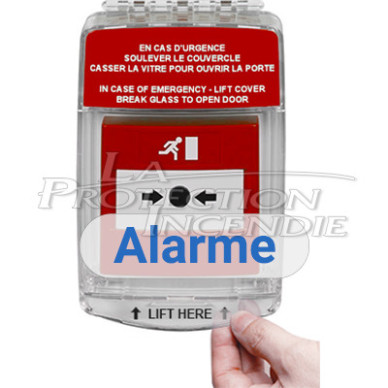

This protective cover is designed to prevent accidental or unauthorized activation of manual call points by providing a visible and lockable barrier. It incorporates an audible alarm that sounds when opened, enhancing security and deterrence, and fits standard flush-mounted manual call points.

Built-in alarm and options

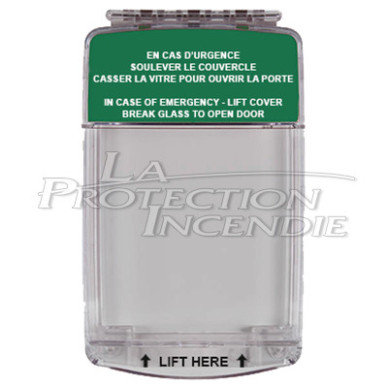

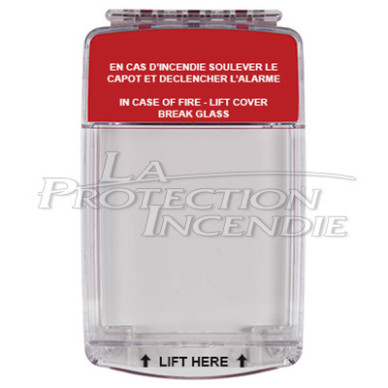

The alarm operates on a 3V lithium battery and delivers a 96 dB audible signal at 1 meter . The cover comes with green and red labels, allowing the trigger type to be quickly identified. A version without an alarm is available as an option (ref. 635).

Installation and accessories

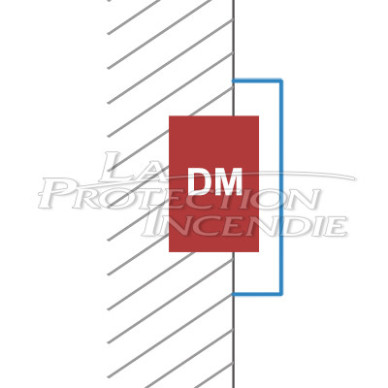

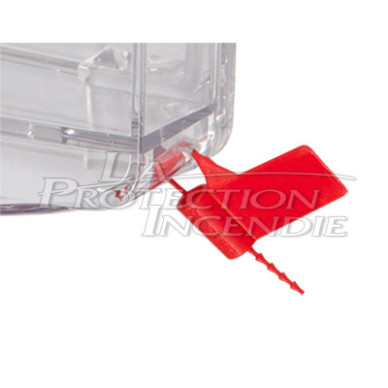

The cover can be sealed by drilling the hole provided for this purpose, allowing the assembly to be locked and limiting fraudulent triggering. A 50 mm spacer (ref. 637B) is available for non-recessed triggers. The kit includes screws, a seal and two sheets of multilingual labels (13 languages).

Features of the Protective Cover with Alarm:

- Material: Polycarbonate
- Exterior Height: 185 mm
- Exterior Width: 114 mm
- External Depth: 41 mm
- Interior height: 106 mm
- Interior width: 95 mm
- Interior Depth: 31 mm
- Weight: 0.160 kg
- Others: Screws and Seals (Supplied), Alarm Sheets Multilingual Labels

Alarm Features:

- Height: 45 mm
- Width: 101 mm
- Depth: 25 mm
- Power supply: 3V Lithium battery
- Sound power: 96dB at 1 m, 88 dB at 3 m

Options available on request:

- 50 mm spacer for non-recessed DMs
- Interconnectable radio transmitter
- Waterproof
