Standalone sound and light device designed to prevent unauthorized openings of a double-leaf emergency exit , activated and deactivated by security key and powered by 9V battery or wired power supply.

See the complete description

€161.70 Tax excluded

Seen it cheaper
Technical guides
09 - LPI - Détecteurs et Alarmes.pdf
Download
These products may also interest you
Product Reference Landmark Designation Price Availability Quantity
Emergency Exit Stop Alarm – Model for 1-Leaf Door
0645
-

Emergency exit stop for 1-leaf door
Price €125.00 HT
In stock
Kit for remote mounting - Single-leaf door
0645.3
-

Kit for remote mounting (1 leaf)
Price €22.80 HT
In stock
Emergency Exit Alarm Key – Secure Arming and Disarming
0645_CL
-

Key for emergency exit alarm code 0645
Price €4.90 HT
In stock
Description

Secure your emergency exits


The emergency exit stop for double-leaf doors is designed to deter and signal any unauthorized opening . When an unintentional opening is detected, the device triggers an audible signal and a light signal .


Operation and power supply

The system operates on the supplied 9V battery and can also be connected to a wired power supply , and activation and deactivation are carried out using a security key. The opening contact can be positioned on either side of the box to suit double-leaf door configurations. The volume can also be adjusted to "low" ( 95 dB ) or "high" ( 105 dB ) mode. Two cables are also supplied to allow remote installation of the alarm when it cannot be positioned next to the triggering system.


Settings and options

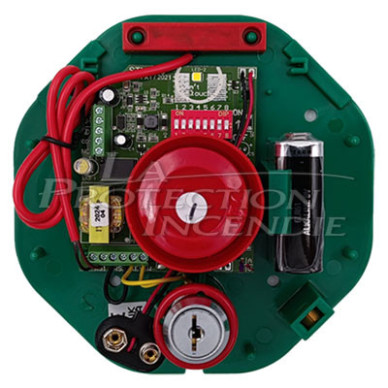

An internal switch allows you to adjust various alarm parameters:
- Arming: immediate or 15-second delay
- Trigger: immediate or 15-second delay
- Stop or not 3 seconds after closing the door
- Signal duration: 30 or 180 seconds
- Continuous alarm or Annunciator mode
- Low battery detection
- High volume (105 dB) or low volume (95 dB)


Features of the Emergency Exit Stop for 2-leaf door:


- Material: Polycarbonate
- Color: Green
- Height: 137 mm
- Width: 137 mm
- Depth: 52 mm
- Weight: 0.35 kg
- Power supply: 9V battery (included) or wired
- Sound power: 95 dB or 105 dB
- Signal duration: 30 or 180 seconds
- Operating temperature: 0°C to 45°C
- Others: Screws (supplied), Label sheet with message (21 languages), 2 arming and re-arming keys (supplied), 2 cables for remote installation

Radio system on demand
