Smoke detector
In stock
0687

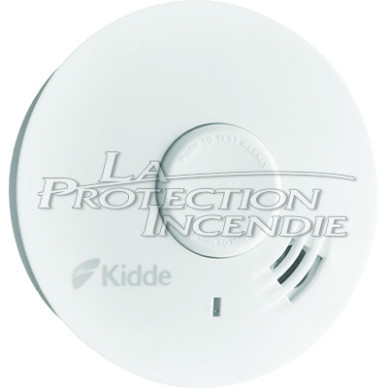

This optical smoke detector activates upon installation of the base and continuously monitors for smoke. It emits an 85 dB alarm, operates on a sealed lithium battery designed for ten years , has a test button and a temporary pause function, and requires vacuum cleaning approximately once a month.
This detector must be present in all homes.
Log in to know your accessibility to the product and its price
Technical guides
These products may also interest you
| Product | Reference | Landmark | Designation | Price | Availability | Quantity |
|---|---|---|---|---|---|---|
|
0761
|
- |
Price
€29.50
HT
|
In stock
|
|
Description
Optical detection and responsiveness
This smoke detector uses a photoelectric sensor to detect the presence of smoke and quickly signal an abnormal situation. The device activates as soon as the base is installed, it remains in standby mode, displaying a flash every 60 to 70 seconds to indicate that it is powered. It emits an 85 dB audible alarm in case of detection.
Indicator lights and signals
The LED indicates the different states/modes of the device:
- Standby (flashing every 60–70 s)
- Low battery (flashing every 30s and beeping every 60s)
- Triggering (flashing every 0.5 s and continuous audible alarm until atmosphere is cleared)
- Mute/pause (flashing every 10s)
- Prevention (flashes twice every 30s, signaled 30 days before the sealed battery becomes low)
- End of life (flashing associated with two beeps every 30 s).
When a CO/alarm is triggered, the red indicator light remains lit continuously.
Testing, Pausing and Maintenance
The "Push to Test" button triggers the weekly test by holding the button down for at least one second. The "Push to HUSH" button temporarily pauses the alarm for ten minutes. It is recommended to regularly check the battery and electrical circuit and to vacuum the detector approximately once a month to prevent clogging.
Lifespan and replacement
The device is intended to be replaced ten years after installation . The end of life is signaled by a specific flashing of the LED and two high-pitched beeps every 30 seconds.
Installation and responsibilities

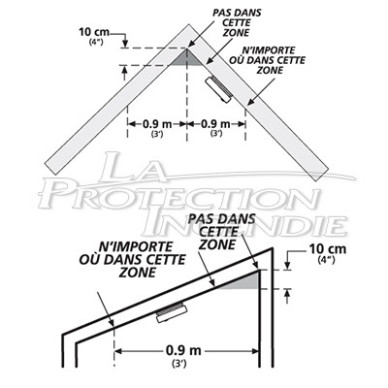

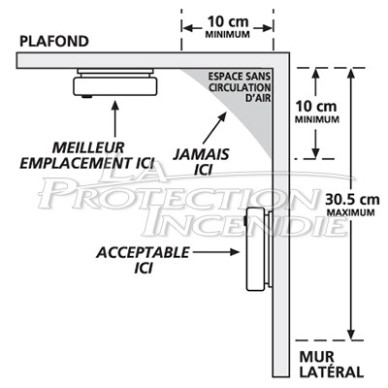

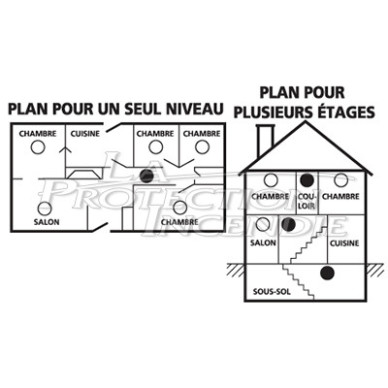

The detector should be installed in recommended locations, such as near boilers and in corridors leading to bedrooms. For private homes, installation is the responsibility of the owner and maintenance is the responsibility of the tenant. Comply with local standards and guidelines during installation.
Smoke Detector Features:
- Material: Plastic
- Height: 45 mm
- Diameter: 105.5 mm
- Weight: 0.140 kg
- Standard: Certified EN 14604 & NF
- Sound power: 85 dB
- Power supply: Sealed Lithium Battery (Supplied)
- Autonomy & Warranty: 10 years
- Functions: Low Battery, Trigger, End of Life, Mute, Prevention
- Others: Indicator light, Mounting bracket
