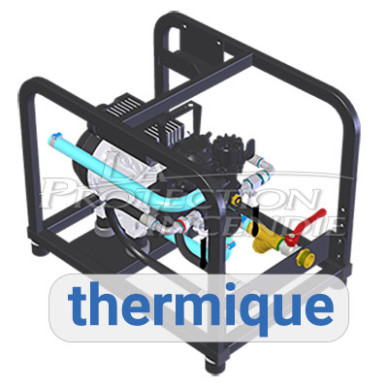

3D illustration Thermal test pump

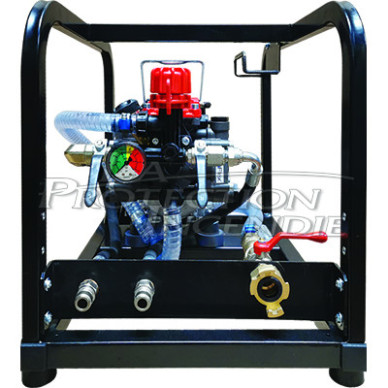

Front thermal test pump

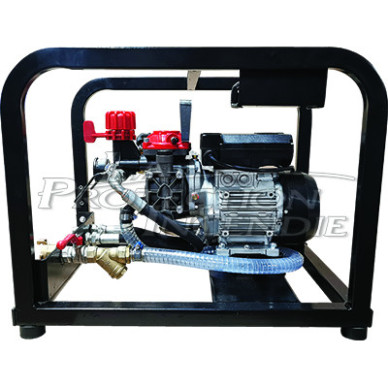

Profile thermal test pump
Thermal test pump for static control

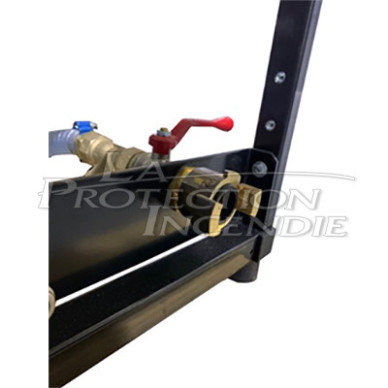

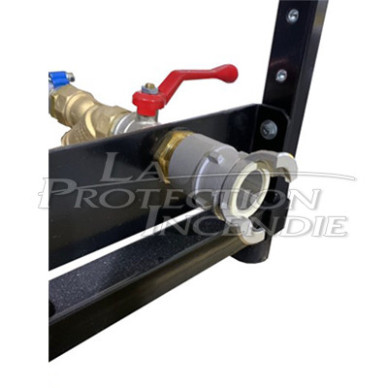

"Cat's head" connection

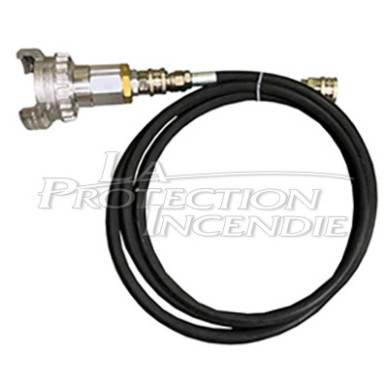

3 m high pressure hose with DSP 65 connection

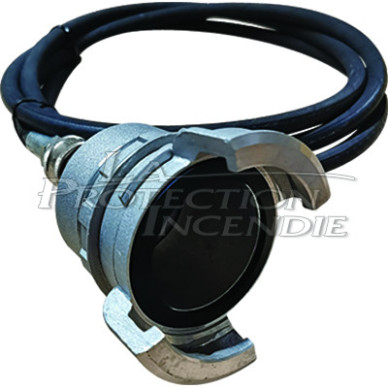

DSP 65 connection on 3 m high pressure hose
3D illustration Thermal test pump
Front thermal test pump
Profile thermal test pump
Thermal test pump for static control
"Cat's head" connection
3 m high pressure hose with DSP 65 connection
DSP 65 connection on 3 m high pressure hose
In progress of replenishment (2 to 8 weeks)
0781B
A technical issue ?

Thermal model test pump, for annual static tests according to standard NF S 61-729:
- Periodic test at 25 Bar
- Annual test at 16 Bar

Supplied with a 3 m high pressure hose with a DSP 65 connection.
Connection by cat head connection, or by SYM 20 connection

See the complete description

Log in to know your accessibility to the product and its price
Login
Technical guides
66 - LPI - Colonne.pdf
Download
0781B - FT LPI WEB - Pompe d'épreuve thermique.pdf
Download
These products may also interest you
Product Reference Landmark Designation Price Availability Quantity
3D illustration electric test pump
0780B
-

Electric test pump for static testing
In stock
Log in to find out your price
Test pump on chassis
0784
-

Static control kit for dry column
2 to 8 weeks
Log in to find out your price
Description

Thermal model test pump, for annual static tests according to standard NF S 61-729:

- Periodic test at 25 Bar

- Annual test at 16 Bar

Features :

- Flow rate: 25L/min

- Power: 4 HP

- Pressure: from 0 to 25 Bar

- Power supply: Thermal 4 HP

- Connection: Cat head or SYM 20 (on request)

- Weight: 36 kg


Supplied with a 3 m high pressure hose with a DSP 65 connection.

Other hoses on request
