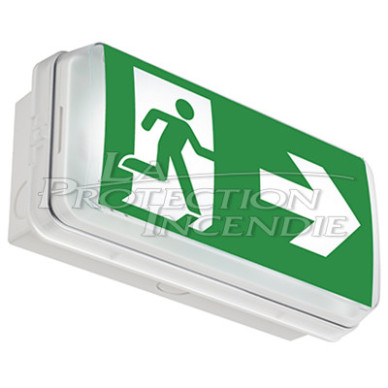

BAES - evacuation - PRIMEVO 60L A

Ensure evacuation routes are clearly marked

The BAES PRIMEVO 60L A is designed to clearly indicate evacuation routes in the event of a power outage. It must be installed every 15 meters in corridors and passageways, above exit doors, emergency exits, obstacles, and at each change of direction.

Operation and continuity of lighting

The unit provides a luminous flux of 45 lumens for one hour thanks to its LED source. In the event of a failure of normal lighting, it indicates entrances and exits, allowing for evacuation of the premises.

Self-test and integrated components

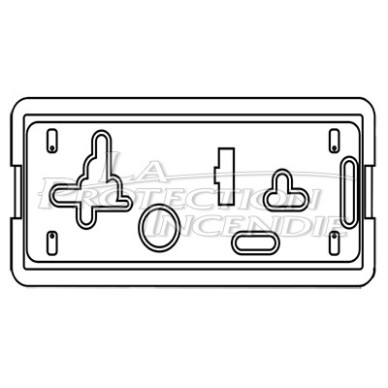

The SATI self-test function automatically performs periodic checks, simplifying maintenance. It features a housing that doubles as a mounting bracket, and a pictogram visible only from one side of the housing.

Installation and compliance

The unit is surface-mounted, with cable entry points on each side of the housing. The emergency lighting unit complies with standard NFC 71820 and is NF Performance certified. The light source is not replaceable at the end of its lifespan and requires replacement of the entire luminaire.

The warranty is 3 years.

Features of the BAES - evacuation - PRIMEVO 60L A:

- Material: Plastic & Transparent Plastic
- Height: 115 mm
- Width: 240 mm
- Depth: 78 mm
- Weight: 0.53 kg
- Insulation class: II
- Power supply: 4.8V x 0.8 Ah battery
- Nominal Supply Voltage: 230 Vac - 50 Hz
- Light Source: LED
- Luminous flux: 45 lm
- Power consumption: 1 W
- Protection index: IP42 / IK10
- Pictogram visibility: 1 side
- NF certified
- Warranty: 3 years

Sold individually, in packs of 10 or 100.
