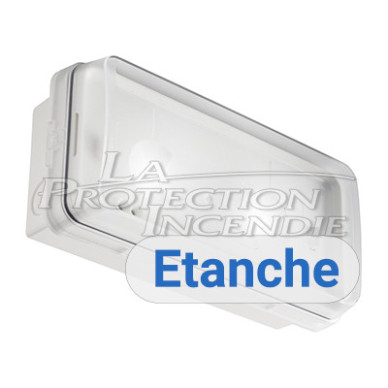

BAEH - habitation - PRIMO3 ET 10L A
In stock
This special IP65 waterproof emergency lighting unit for residential use ensures the signaling of exits in case of evacuation.
Equipped with the SATI self-test function, it guarantees reliable operation without manual intervention. With its 8-lumen output , 5-hour battery life , and waterproof design suitable for humid environments , it is perfectly suited for residential building circulation areas .
NF certified.
Technical guides
These products may also interest you
| Product | Reference | Landmark | Designation | Price | Availability | Quantity |
|---|---|---|---|---|---|---|
|
0564
|
- |
In stock
|
|||
|
0568
|
- |
In stock
|
Description
Reliable light guide for securing residential circulation
Designed for residential buildings , this self-contained emergency lighting unit provides immediate visibility of emergency exits during a power outage. Its 8-lumen output , specifically sized for living areas , effectively guides occupants in stairwells, hallways, or common areas.
Waterproof design for demanding environments
Thanks to its IP65 rating , this waterproof model can be installed in areas exposed to humidity or splashes, while maintaining its signaling performance. This added robustness makes it particularly suitable for technical rooms, semi-open parking lots, or wet circulation areas in residential buildings.
SATI self-test function: safety without intervention
Thanks to its SATI system, the unit automatically performs regulatory tests to guarantee continuous availability. This autonomous control ensures reliable operation without manual handling or regular checks.
Complete and ready-to-install equipment
The device consists of a housing that serves as a hook , a reflector equipped with its electronic board, a basin, and a set of pictograms to indicate the exit . A cable passage is integrated on each side of the housing, facilitating surface mounting.
Extended autonomy for a stress-free evacuation
Powered continuously by mains electricity, the unit has an internal battery providing up to 5 hours of illumination in emergency mode. The LED source is not replaceable: when its lifespan is reached, the entire light fixture must be replaced.
Compliant with the requirements for residential buildings
Specifically designed to meet the standards applicable to emergency lighting systems, it is suitable for use in condominiums, residences, and sleeping accommodations. It must be installed every 15 meters in circulation areas, above each exit or obstacle, and at each change of direction.
Features of the BAEH - residential - PRIMEVO ET 10L A:
- Material: Plastic & Transparent Plastic
- Height: 115 mm
- Width: 240 mm
- Depth: 78 mm
- Weight: 0.54 kg
- Insulation class: II
- Power supply: 4.8V x 0.8 Ah battery
- Nominal Supply Voltage: 230 Vac - 50 Hz
- Light Source: LED
- Flux: 8 lm
- Power consumption: 1 W
- Protection rating: IP65 / IK10
- Pictogram visibility: 1 side
- NF certified
- Warranty: 3 years
Sold individually, in packs of 10 or 100.
