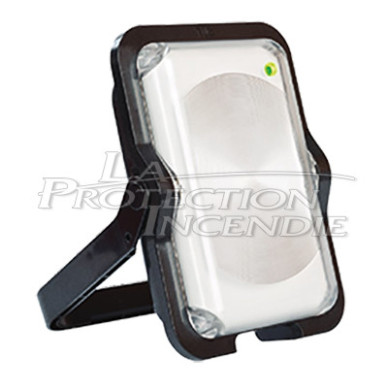

Bloc portable - BAPI

Designed for electrical and technical rooms

The BAPI is intended for lighting and security operations in electrical premises (TGBT, LV room, generator set, etc.), in accordance with standard NF C 15-100, article 781.5.4. It is suitable for technical environments such as boiler rooms, transformer stations or elevator machinery rooms and can be used for night patrols.

Practical lighting modes and suitable battery life

The device offers three modes via a push-button switch: one press activates 45 lm for 3 hours , two presses provide 100 lm for 1 hour , and three presses turn the device off . A safety LED indicates the presence of power or a power outage. These modes allow the lighting to be adapted to the task at hand.

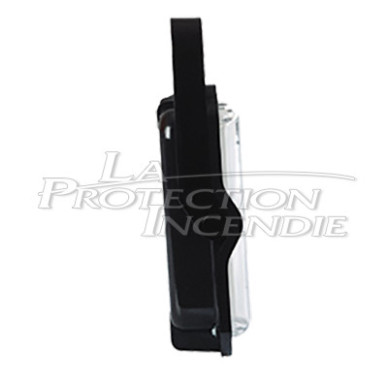

Articulated handle and ergonomic design

The articulated handle makes it easy to carry by hand and allows the lamp to be positioned at various angles to direct the beam. The optics and handle ensure even illumination, even in tight spaces, providing a comfortable grip during operations.

BAES conversion kit and accessories included

Conversion to BAES is done simply by turning the electronic board over and moving the black knight, the consumption in BAES mode being 1 W. The BAPI is supplied with a neck strap, a charger and a wall mount (screws not supplied).

Features of the Portable Emergency Response Unit (BAPI):

- Material: Polycarbonate and transparent polycarbonate
- Height: 240 mm
- Width: 138 mm
- Depth: 60 mm
- Weight: 0.565 kg
- Power supply: 2.4V - 1.5Ah Ni-Cd battery
- Battery life: 3 hours at 100 lm & 1 hour at 45 lm
- Nominal Supply Voltage: 230 Vac - 50 Hz
- Light Source: LED
- Luminous flux: 100 lm / 45 lm in standby mode
- Power consumption: 1 W (In BAES mode)
- Protection index: IP 42 / IK 10
- NF certified
- Manufacturer code: EDF 100L - 612100
- Warranty: 1 year

Sold individually or in packs of 20.
