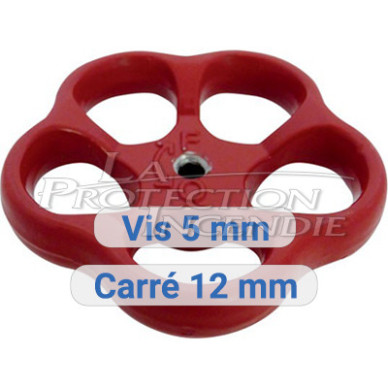

Faucet handwheel - 12 mm square - screw diam. 5mm

An essential tool for handling your taps

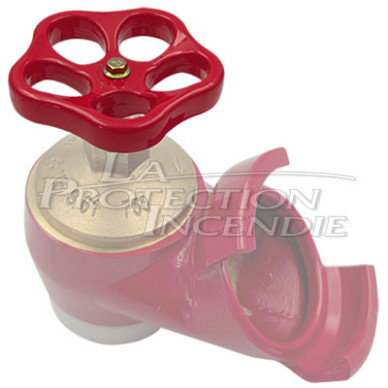

This valve handwheel is suitable for DN40 and DN65 dry riser fire hydrants as well as certain RIA shut-off valves . It is mounted on a 12 × 12 mm male square.

Fixing and tightening

The steering wheel is fixed using the supplied screw, which is inserted into the upper 5 mm hole. This is an M5 screw , with a 9 mm diameter hexagonal head . It is made of grade 8.8 steel , a high-strength material (≈ 800 N/mm²), generally zinc-plated for better protection.

Handling and finishing

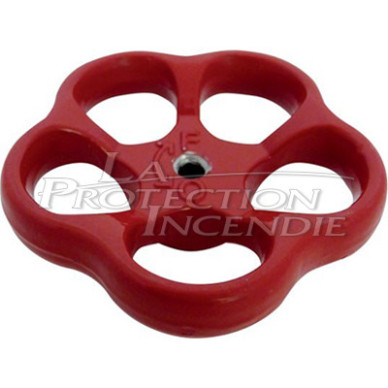

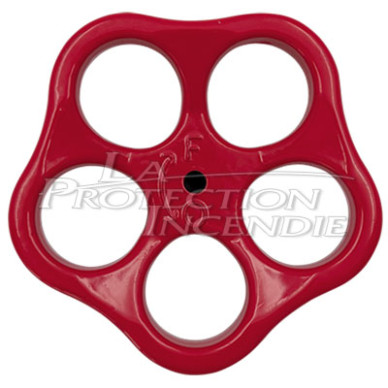

This steering wheel is made of steel with a red epoxy paint coating that protects the surface and makes it easy to identify on site. It has five openings that improve grip, reduce the risk of slipping, and ensure efficient handling during operations.

Features of the Faucet Handwheel:

- Material: Steel
- Coating: Red Epoxy Paint

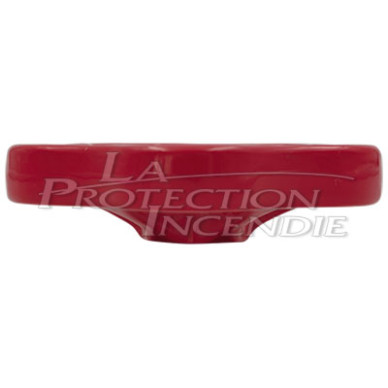

- Height: 22.50 mm
- Diameter: 87.05 mm
- Weight: 0.096 kg
- Upper hole diameter: 5 mm

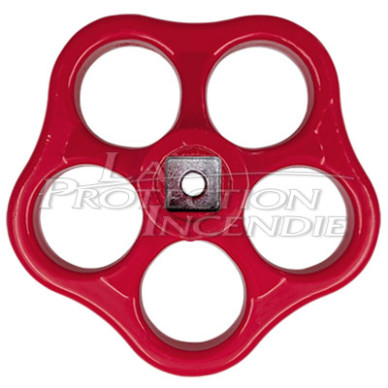

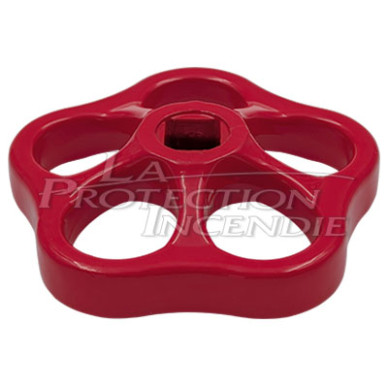

- Lower square: 12 x 12 mm
- Others: Screws (supplied)

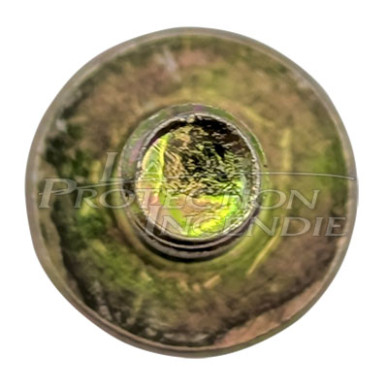

Features of M5 Screw:

- Material: Steel
- Height: 14.80 mm
- Diameter: 11.40 mm
- Weight: 0.003 kg
- Head shape: Hexagonal
- Head diameter: 9 mm
- Thread height: 9.5 mm
- Thread diameter: 5 mm
- Thread pitch: 0.8 mm
