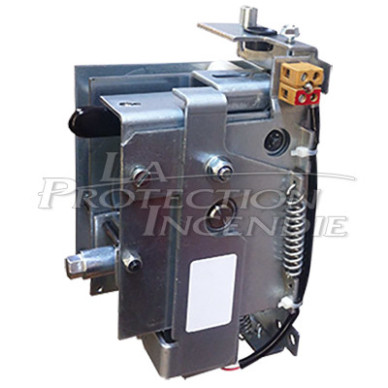

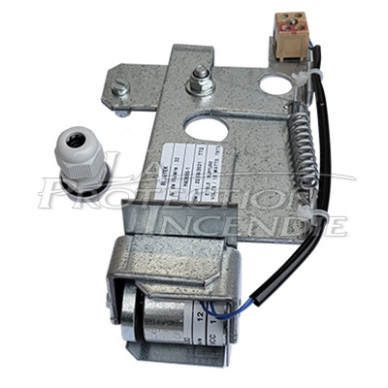

Breakaway electromagnetic module for mechanical winch BT130
In stock
9602B
24 V TBTS electromagnetic module (1.6 W) designed to remotely trigger the BT130 mechanical winch (ref. 9601B) in the event of a power failure . Installed on the winch, it transforms a mechanical fire winch into an electrically controlled winch.
Log in to know your accessibility to the product and its price
Technical guides
These products may also interest you
| Product | Reference | Landmark | Designation | Price | Availability | Quantity |
|---|---|---|---|---|---|---|
|
9601B
|
- |
Price
€93.00
HT
|
In stock
|
|
|
|
9603B
|
- |
In stock
|
Description
Trigger your winch remotely
The electromagnetic break module ensures remote triggering of the mechanical winch when there is no voltage . Mounted on the winch (ref. 9601B), it releases the mechanism in the event of a power failure and triggers the action on the safety device.
Conversion of a mechanical winch into an electrically controlled winch
By combining this module with the mechanical winch, you obtain electrical control in break mode : the module intervenes when the 24 V TBTS power supply is cut, thus allowing remote control of the mechanism.
Usage and compatibility
The module is designed to be installed with the BT130 mechanical winch (ref. 9601B) and is intended for remote triggering in the event of a power outage. It operates at 24 V TBTS and consumes 1.6 W in breaking operation.
Features of the BT130 Electromagnetic Break Module for Mechanical Winch:
- Material: Metal
- Height: 170 mm
- Width: 99.6 mm
- Depth: 62.6 mm
- Power supply: 24 V TBTS
- Power: 1.6 W
- Weight: 0.60 kg
- Compatibility: BT130 mechanical winch (ref. 9601B)
Module for the old winch code 9601 on request
