Male hexagon crank

Test and reset your mechanical winches

The male hexagon crank is designed for use with older mechanical winches (ref. 9601) for testing and resetting smoke extraction systems. It allows manual operation of the mechanism when necessary.

Ergonomic handle and continuous rotation

The handle is shaped to facilitate grip; it can rotate 360° around the rod, allowing continuous use and facilitating rapid activation of the device to which it is attached.

Construction and compatibility

The crank combines a plastic handle and a metal hexagonal rod. Its male hexagonal rod fits onto the end piece provided on older winches (ref. 9601) to ensure the closing or testing operation.

Features of the 6-sided male crank:

- Material: Plastic handle & Metal rod
- Height: 154 mm
- Width: 26.4 mm
- Depth: 120 mm
- Handle Shape: Tight cylinder on the central part
- Handle length: 66 mm
- Handle Diameter: 26.2 mm (Maximum), 20 mm (Minimum)
- Stem Shape: Hexagonal

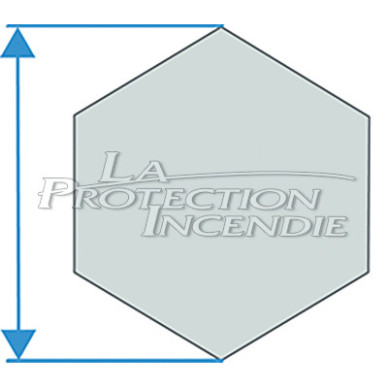

- Stem Diameter: 11.4 mm (From one vertex to its opposite), 10 mm (From one edge to its opposite)
- Weight: 0.16 kg
