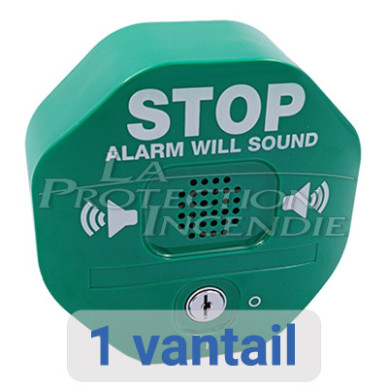

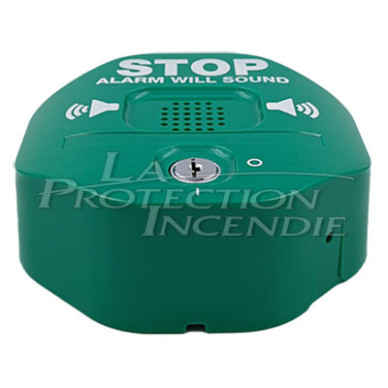

Standalone sound and light device designed to prevent unauthorized openings of a single-leaf emergency exit , activated and deactivated by security key and powered by 9V battery or wired power supply.

See the complete description

€125.00 Tax excluded

Seen it cheaper
Technical guides
09 - LPI - Détecteurs et Alarmes.pdf
Download
These products may also interest you
Product Reference Landmark Designation Price Availability Quantity
Emergency Exit Stop Alarm – Model for 2-Leaf Door
0645.2
-

Emergency exit stop for 2-leaf door
Price €161.70 HT
In stock
Kit for remote mounting - Single-leaf door
0645.3
-

Kit for remote mounting (1 leaf)
Price €22.80 HT
In stock
Emergency Exit Alarm Key – Secure Arming and Disarming
0645_CL
-

Key for emergency exit alarm code 0645
Price €4.90 HT
In stock
Description

Secure your emergency exits

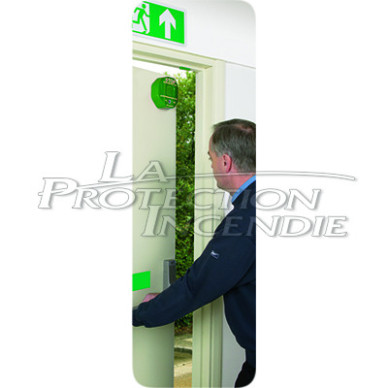

The emergency exit stop for single-leaf doors is designed to deter and signal any unauthorized opening . When an unintentional opening is detected, the device triggers an audible signal and a light signal .


Operation and power supply

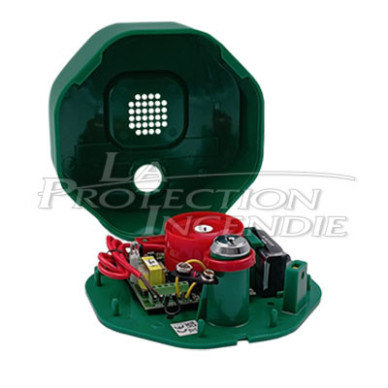

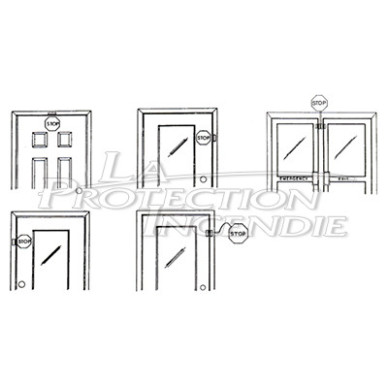

The system operates on the supplied 9V battery and can also be connected to a wired power supply , and activation and deactivation are carried out using a security key. The opening contact can be positioned on either side of the housing to accommodate single-leaf door configurations. The volume can also be adjusted to "low" ( 95 dB ) or "high" ( 105 dB ) mode.


Settings and options

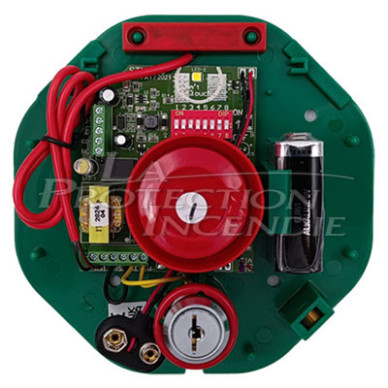

An internal switch allows you to adjust various alarm parameters:
- Arming: immediate or 15-second delay
- Trigger: immediate or 15-second delay
- Stop or not 3 seconds after closing the door
- Signal duration: 30 or 180 seconds
- Continuous alarm or Annunciator mode
- Low battery detection
- High volume (105 dB) or low volume (95 dB)


Features of the Emergency Exit Stop for 1-leaf door:


- Material: Polycarbonate
- Color: Green
- Height: 137 mm
- Width: 137 mm
- Depth: 52 mm
- Weight: 0.35 kg
- Power supply: 9V battery (included) or wired
- Sound power: 95 dB or 105 dB
- Signal duration: 30 or 180 seconds
- Operating temperature: 0°C to 45°C
- Others: Screws (supplied), Label sheet with message (21 languages), 2 arming and re-arming keys (supplied)
