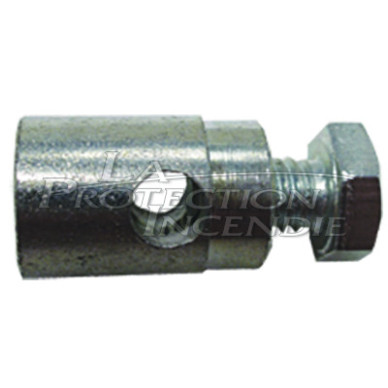

Round cable clamp

Greenhouse cable round
In stock
9611
A technical issue ?

Zinc-plated steel cable clamp designed to secure the cable to operating components. Supplied with an H M5 x 0.8 screw (metric thread), it offers a fixing solution compatible with standard mountings.

See the complete description

Log in to know your accessibility to the product and its price
Login
Technical guides
16 - LPI - Désenfumage.pdf
Download
These products may also interest you
Product Reference Landmark Designation Price Availability Quantity
BT130 mechanical winch for smoke extraction system
9601B
-

Mechanical winch DAC / DCM BT130
Price €93.00 HT
In stock
Cable for mechanical winch - Ø 2.50 mm, 250 m
9609
-

2.5 mm cable - 250 m
In stock
Log in to find out your price
Description

Secure your cables to the operating parts


This cable clamp allows the cable to be fixed to the operating components. It is mounted with a suitable screw and is suitable for standard assemblies.


Composition of the Cable Clamp

The article consists of a H M5 x 0.8 screw in zinc-plated steel (class 8.8) and a threaded tube F5 x 0.8 also in zinc-plated steel


Usage and compatibility

Fits into the fasteners commonly used for holding steel cables.


Cable Clamp Screw Features:


- Material: Zinc-plated steel (Class 8.8)
- Height: 16.1 mm
- Head shape: Hexagonal
- Head height: 4.1 mm
- Head diameter: 11.2 mm
- Weight: 0.01 kg
- Designation: H M5 x 0.8 (0.1968") screw
- Thread Type: Metric (Male)
- Thread diameter: 5 mm
- Thread height: 10.4 mm
- Thread pitch: 0.8 mm


Threaded Tube Features:


- Material: Zinc-plated steel
- Height: 15 mm
- Diameter: 11.4 mm
- Shape: Hexagonal
- Weight: 0.01 kg
- Designation: F5 x 0.8 (0.1968")
- Thread Type: Metric (Female)
- Thread diameter: 5 mm
- Thread Depth: 8 mm
- Thread pitch: 0.8 mm

Sold individually
