Deflection pulley under housing
In stock
9614

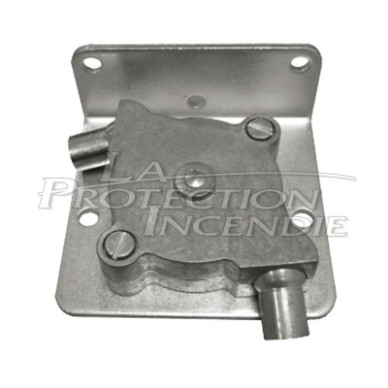

Reversible steel cased return pulley with swivel tube , designed to hold the cable when opening and closing mechanical smoke extraction systems. Mounted on a perforated metal bracket (7 holes), it is suitable for complex configurations between skylight and control device.
Log in to know your accessibility to the product and its price
Technical guides
These products may also interest you
| Product | Reference | Landmark | Designation | Price | Availability | Quantity |
|---|---|---|---|---|---|---|
|
9601B
|
- |
Price
€93.00
HT
|
In stock
|
|
|
|
9609
|
- |
1 to 3 weeks
|
|||
|
9615
|
- |
In stock
|
|||
|
9617
|
- |
In stock
|
Description
Hold the cable during movements
The cased return pulley holds the steel cable during the opening and closing of mechanical smoke extraction systems, ensuring suitable guidance between the skylight and the control device (e.g. a winch).
Design for complex configurations
The pulley is reversible and mounted on a metal bracket that provides a mounting support. It is equipped with a swivel tube, which allows the cable return to be adjusted according to the installation configuration. The bracket has seven mounting holes : five on the small part and two on the part where the pulley is attached.
Usage and compatibility
Designed for installations where the cable path requires a return (complex configurations), this pulley is placed under a casing and integrated into control devices and skylights in accordance with installation practices.
Features of the under-housing idler pulley:
- Material: Steel
- Height: 82 mm
- Width: 88 mm
- Depth: 36.8 mm
- Pulley diameter: 49 mm
- Weight: 0.4 kg
