Diffuseur sonore conventionnel
In stock
The wired sounder connects in 1.5 mm² pairs (type CR1) to the 986-2/986-4 systems and delivers a 90 dB audible alert at 2 m for indoor signaling.
Log in to know your accessibility to the product and its price
These products may also interest you
| Product | Reference | Landmark | Designation | Price | Availability | Quantity |
|---|---|---|---|---|---|---|
|
0986-2
|
- |
Price
€125.00
HT
|
In stock
|
|
|
|
0986-4
|
- |
Price
€193.00
HT
|
In stock
|
|
|
|
0989-SL
|
- |
In stock
|
Description
Audible signal for sector alarm

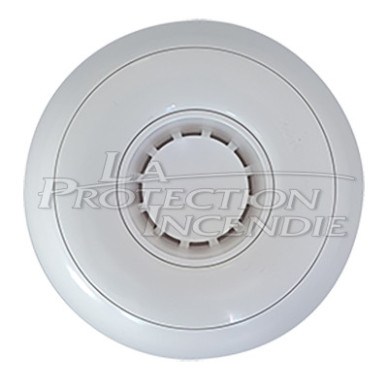

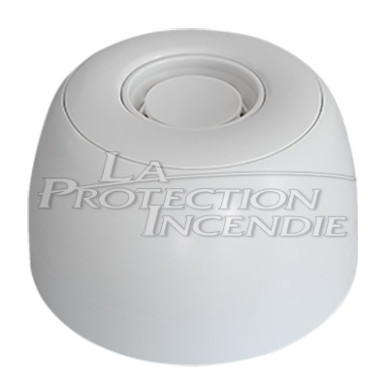

The sound diffuser connects to mains alarm systems (references 986-2 and 986-4) and produces a 90 dB sound alert measured at 2 metres to ensure good signal perception indoors.
Installation and wiring

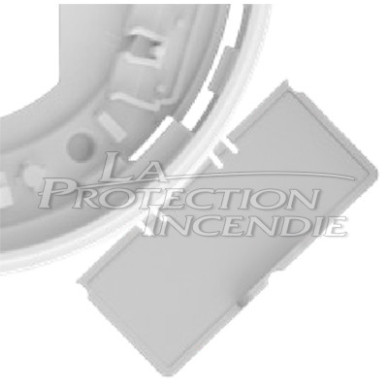

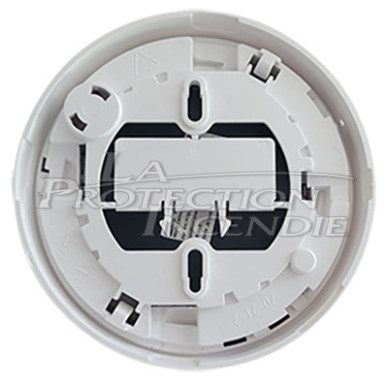

The diffuser is wired and connects with a 1.5 mm² CR1 pair. It is designed for indoor installation and can be installed on center distances of 44–61 mm and incorporates a label holder to identify the zone or the associated detector. It is compatible with the mains alarm systems referenced 986-2 and 986-4.
Compliance and use in the professional environment
The diffuser is suitable for environments such as establishments open to the public (ERP) and those open to workers (ERT). It is NFS 61-936 and NF S32-001 certified, has an IP30 / IK07 protection rating and operates from −10 °C to +55 °C. These elements describe its technical characteristics (mechanical resistance, protection against dust and range of use).
Sound Diffuser Features:
- Material: ABS plastic
- Height: 67 mm
- Diameter: 110 mm
- Weight: 0.165 kg
- Operating Temperature: -10°C to +55°C
- Power supply: wired (10–30 Vdc, nominal voltage 18 Vdc)
- Sound power: 90 dB at 2m
- Protection index: IP30 / IK07
- Standard: NFS 61-936 & NF S32-001
- Fixing center distance: Width 44-61 mm
- Others: Screws (supplied), Label holder (integrated)
